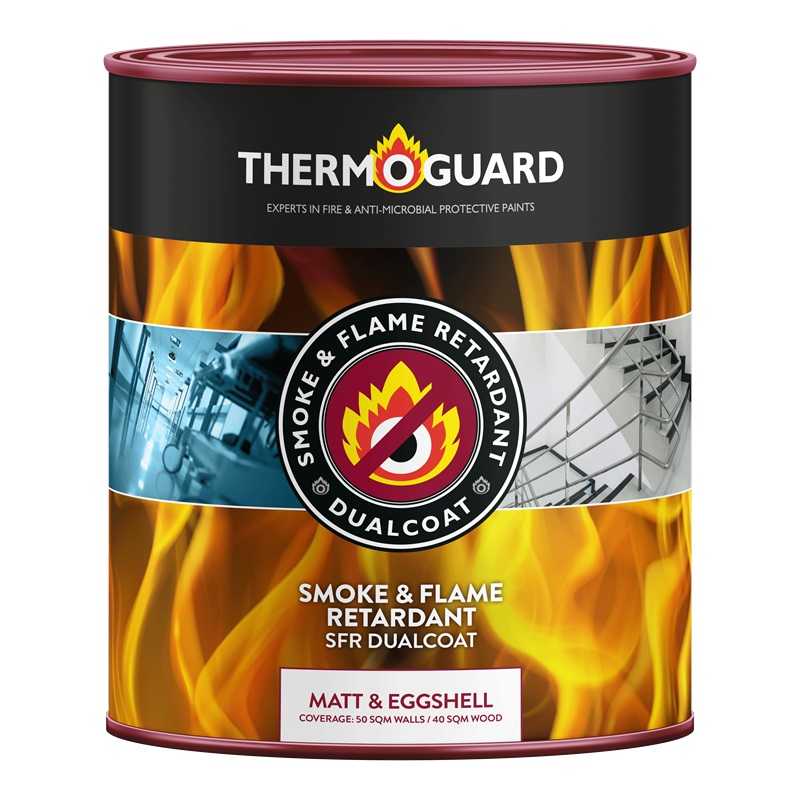

Thermoguard Dualcoat Smoke and Flame Retardant Topcoat is a water based decorative topcoat that forms part of an intumescent system for wood, internal steel and cast iron.
For wood surfaces, Timbercoat Intumescent should be used as the basecoat. For internal steel or cast iron, use Thermocoat WI or Thermoguard WO, depending on the shape.
Thermoguard Dualcoat creates “cross links” in the surface during the drying process. This creates a smooth, durable and cleanable surface by eliminating microscopic pockets that can host bacteria.
If you require certification, please download the relevant enquiry form from the data sheets tab. Once completed, send the form by email to [email protected]. We will then reply with the amount and thickness you need to apply to achieve the required fire rating. This will also provide you with a reference number, which you will need in order to receive certification once the paint is applied.
Apply 1 or 2 coats over Thermocoat or Timbercoat basecoats as instructed by the system guide for the basecoat required.
Do not apply in temperatures under 8°C or above 30°C.
Maximum relative Humidity below 75%.
Wood should be fully dry.
Surface should be at least 3°C above the dew point.
Insulating and Thermocoat Basecoats must be clean and fully hard dry.
Stir well before use
Brush or Roller
Use a woven short pile roller sleeve or synthetic brush at rate stated on can.
Pressure Pot and Gun conventional with hand-portable compressor.
Thin 5% water
OR Airless Graco 1500, 3500 or equivalent. 3/8” line, 30 mesh filter on machine, no
filter in gun. 521, 523, 621 or 623 tips.
Ensure coverage is applied as per can i.e., 20 sq m can covers 20 sq metres.
Return as much unused material to its original container as possible. Wash brushes, rollers and guns with clean water immediately following use.
specified by Thermogaurd in order to ensure the system meets certification standards
In normal conditions product will be touch dry in an hour and fully dry after 4 hours
