Product Description

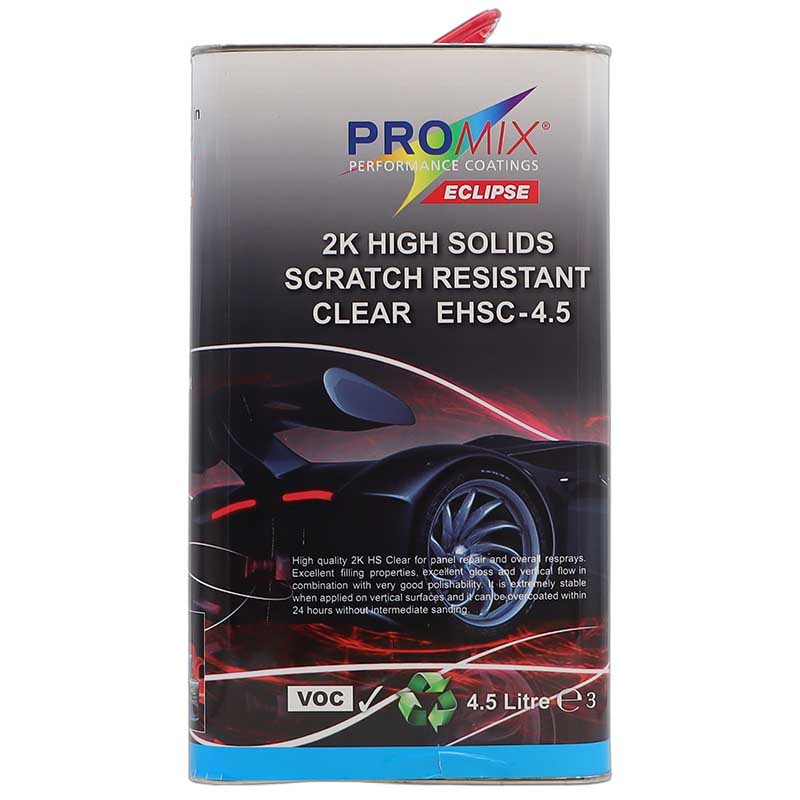

Eclipse HS Scratch Resistant 2K Clearcoat is a 2 pack automotive clear coat for use over base coats. It provides the surface with scratch resistance and can be overcoated within 24 hours if a further coat is desired.
The clear coat can be used to overcoat both water and solvent based base coats, including Palatine Chassis Spray paint and Indasa Acrylic Spray Paint Black. This improves the durability of the surface while preserving the colour of the previous coat.
The coating is supplied in 1L or 4.5L containers and has a theoretical coverage of 8 – 9m² per litre when applied at a dry film thickness of 50 microns. It is extremely stable when applied to vertical surfaces.
Mixing: Mix 2:1 with any of the following hardeners:
– EMSN normal
– EMSF fast
– EMSXF extra fast
Potlife: 5h at 20°C
Thinning: 5-10% ProMIX Eclipse Thinner
16-18s / DIN 4 mm / 20°C
Spraying specifications:
Compliant 1.3 – 1.5 mm (2 spray passes)
2.0 – 2.5 bar inlet pressure
2 = 50 – 60 micron
HVLP 1.3 – 1.5 mm (2 spray passes)
0.7 bar atomization pressure
2 = 50 – 60 micron
Wait 10 min before increasing temperature
Bake 20 min at 60°C panel temperature
Short Wave 8 min
The object should be maintained at greater than 60cm from source.
Wear suitable protection.
Surface Preparation
Proper surface preparation is essential for the success of any protective coating system. Before you begin ensure the area is free from any dust, oil, grease, old coatings and surface contaminants.
The preparation of steelwork prior to painting generally falls into two main areas; that of degreasing and the removal of rust and scale.
All surfaces to be painted should be clean, dry and free from loose and flaking material, dust, grease and millscale, etc.
Prime bare surfaces with Palatine Anti-Corrosive Metal Primer or Palatine All Purpose Primer / Undercoat in accordance with our recommendations
For non-ferrous metals use Palatine Fast Dry etching primer.
Rub down previously gloss painted surfaces with fine waterproof abrasive paper and rinse thoroughly.
Mixing
Stir the paint with a drill stirrer or wooden baton at least 2” wide. Continue to stir during application.
Application
Best results are obtained in warm (minimum 10°C), dry conditions.
Mix thoroughly for approximately 2 minutes using a drill stirrer. A wooden batten at least 25mm wide is also ideal.
Apply an even coat using a brush, short to medium pile roller on smooth surfaces and a long pile roller on textured surfaces
For spray application by either airless or conventional spray a dilution ration of no more than 10% is recommended with Palatine White Spirit by volume applying thin coats allowing each one to dry before applying subsequent coats.
Once dried, a second coat can be applied at full strength. This will prolong the life and performance of the coating.
Thinning and Cleaning: Use Palatine White Spirit.
If using more than one batch of the same colour, intermix before use
Preceding Coat
Prime bare surfaces with Palatine Anti-Corrosive Metal Primer or Palatine All Purpose Primer / Undercoat in accordance with our recommendations
For non-ferrous metals use Palatine Mordant Solution.
Subsequent Coat
A second coat is recommended for maximum protection.
